Linear Lights for Machine Vision: High-Intensity and Uniform Illumination for Line Scan Cameras

The linear lights for machine vision distributed by Atelpi are designed to deliver high-intensity, uniform, and controlled illumination, making them ideal for industrial applications that demand precision and consistency. These linear LED lighting systems are perfectly suited for both direct illumination (focused or diffused) and backlighting, especially when used with line scan cameras.

Thanks to their optimized design and the high quality of the LEDs used, Atelpi’s linear lights provide stable and repeatable performance over time, enhancing the quality of images captured in machine vision systems. Perfect for use in automation, optical inspection, and industrial quality control, they ensure reliable results even in challenging production environments.

Please register to view attachments.

HCL-LEL-C

HCL-LEL-C

 83 products
HCL-LEL-C-W13

HCL-LEL-C-W13

 137 products
HCL-LEL-D-W13

HCL-LEL-D-W13

 137 products
HCL-LEL-E-W13

HCL-LEL-E-W13

 137 products

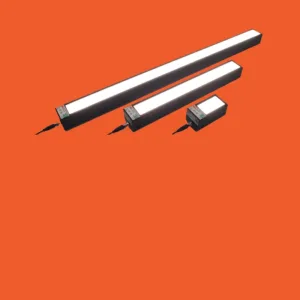

HCL-LER-S-W13

HCL-LER-S-W13

 136 products

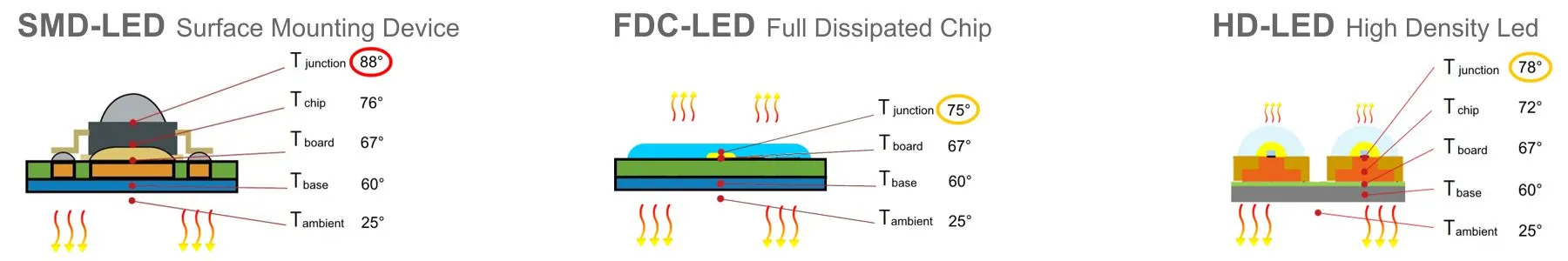

High Technology Led Chip

  LED-TYPE
SMD FDC HD
dissipation medium very high high
light uniformity low high very high
lifespan at equal brightness medium very high very high
brightness at equal lifespan medium very high very high
pulse current up to 100 ms X 3 X 4 X 6
number of LEDs per m2 3k - 38k 20k - 50k 120k - 170k



Full compliance with ISO and EN standards




Atelpi ensures its illuminators comply with guidelines for evaluating and controlling potential health risks. Most of our illuminators also adhere to the following standards:

  • EN 62471:2008 (photo biological risk) defines photobiological safety standards for lamps, assessing risks from optical radiation exposure to humans.
  • ISO 13732-1:2009 (Machinery Directive on operator thermal risk) This standard provides a maximum temperature threshold for contact times of less than 1 minute of 51° for metal and 60° for plastics For some of our illuminators the choice to use a graphene plastic polymer allows to fall within this standard even with an ambient temperature of 35°.
  • ISO 15066:2016 (collaborative robots) The shape with rounded edges and the plastic material make these illuminators suitable for installation on collaborative robot arms.
  • EN 55032 (EMC emission) defines electromagnetic emissions to ensure electromagnetic compatibility and avoid interference.
  • EN 61000 (EMC immunity) defines EMC immunity requirements for industrial environments, ensuring equipment withstands electromagnetic disturbances without performance degradation.
